15 Watt RGB LED Diode PC Amber 1800K 4in1 High Power 650lm LEDs

Product Categories
GUANGZHOU TIANXIN PHOTOELECTRIC CO., LTD
Contact Now

15 Watt RGB LED Diode PC Amber 1800K 4in1 High Power 650lm LEDs

Brand Name : TYANSHINE

Model Number : TX-RBAG15B120-001

Certification : ISO9001:2008 SGS RoHS

Place of Origin : CN

MOQ : 500pcs

Price : USD

Supply Ability : 100K / month

Packaging Details : In Reel

Color-mixing : RGB + PCAmber

Power : 15W

Current : 1000mA

Voltage : 3.2-3.5V

Beam Angle : 120 degree

Lumen : 650lm

Contact Now

15 Watt RGB LED Diode PC Amber 1800K 4in1 High Power 650lm LEDs​

Features RGB PC Amber LEDs:

  1. Small and bright SMD package LEDs, Patent LEDs
  2. Compatible with Optical LENs of Cree XLamp XML Color,MCE LEDs, Osram Ostar LEDs
  3. Compact LED light source with small LES, RGBW chips evenly distributed in 2.4x2.4mm space
  4. Same light-emitting shape for the 4 color LED die, high orientability of light, excellent color-mixing effect
  5. Packaged with high thermal conductivity materials, low thermal resistance

Specifications:

Code Color Vf (V) If (mA) λd(nm) φv(lm) Power LES(mm)
TX-RBAG15B120-001 Red 2.5-3.2 1000 618-628 130-170 15W Φ5.8
Green 3.2-3.8 1000 520-530 200-220
Blue 3.2-3.8 1000 450-460 40-60
Amber 3.2-3.8 1000 1800K-1900K 150-180

Parameter Symbol Values Units
Min. Typical Max.
Continuous Forward Current IF - - 1000 mA
Forward Voltage VF R 2.5 2.8 3.2 V
G 3.2 3.5 3.8
B 3.2 3.5 3.8
A 3.2 3.5 3.8
Luminous Flux φv R 170 205 - lm
G 200 240 -
B 40 55 -
A 280 310 -
Dominant Wavelength λd R 618 623 628 nm
G 520 525 530
B 450 455 460
Correlated Colour Temperature CCT A 1700K 1800K 1900K

RGBW LED dimensions:

15 Watt RGB LED Diode PC Amber 1800K 4in1 High Power 650lm LEDs

Applications:

  • Entertainment Lighting
  • Architectural illumination
  • Display & Projection

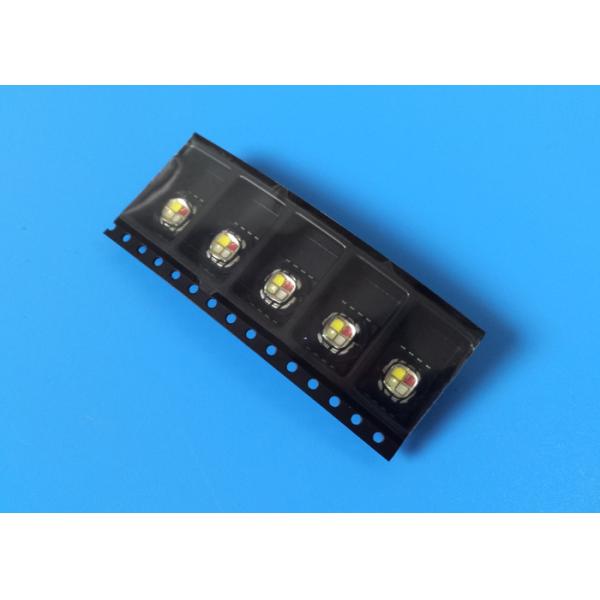

Packing details:

15 Watt RGB LED Diode PC Amber 1800K 4in1 High Power 650lm LEDs

15 Watt RGB LED Diode PC Amber 1800K 4in1 High Power 650lm LEDs
